"Multiple Air Chamber
System" (MACS) Separators

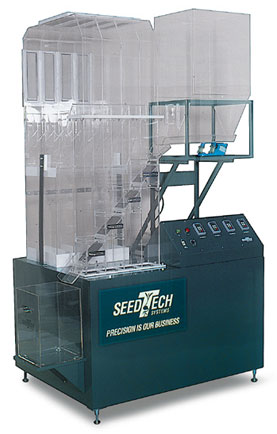

STS-MACS
 A
technological breakthrough in precision seed upgrading! The
STS-MACS is so sensitive in its calibration that it can separate
seed based on the moisture and tissue development of the seed
and thus dramatically improves seed germination.
The STS-MACS is a multiple air chamber system which stratifies
columns of air and uses this air to separate products.
Separation is accomplished by using a vibratory feeder unit to
feed the product into multiple enclosed chambers. Air flow is
calibrated by digitized variable frequency computers. The user
has direct control of air flow levels which allow for precise
air adjustments in each column, thus, the desired level of
product separation is obtained.
Seed separator features
- Programmable key pad operation or
standard (air flow) calibration operation.
- Removable screen chamber cartridges
for easy clean out and versatility of screen size in
relation to product size.
- Virtually hands free operation.
- Quiet operation little to no
mechanical maintenance required.
- Metal or optional clear acrylic
construction (center body only).
- Multiple chamber design for a
greater degree of product separation.
|
 |
Proven seed
separation
The STS-MACS separator has been proven to be highly
effective in upgrading product and has accomplished what
other processing machines do collectively using only a
single-step process.
The STS-MACS has been proven to recover seed losses from
other processing machines. As much as 25-50% more seed
yield was gained from the recovery with the same or
higher germination.
