THE
PRODUCT LINE - PELLETING EQUIPMENT |
|
Type 9105.00.00 |
Type 9106.00.00 |

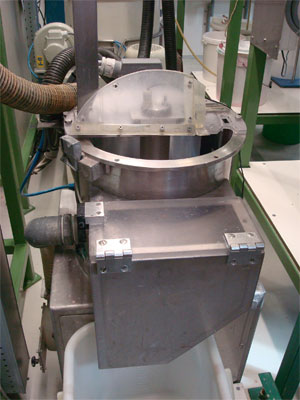

Diameter 300 mm. This
pelleting machine is suitable for the semi automatic
pelleting of small seed lots of flower-, vegetable- and
agricultural seeds. The machine pellets a seed lot in
batches. The seed batches should be weighed manually and
manually be discharged in the pelleting room. Also the
speed of the rotor and spinning disc should be adjusted
manually.
 |
Diameter 500 mm. This
pelleting machine is suitable for the semi automatic
pelleting of small seed lots of flower-, vegetable- and
agricultural seeds. The machine pellets a seed lot in
batches. The seed batches should be weighed manually and
manually be discharged in the pelleting room. Also the
speed of the rotor and spinning disc should be adjusted
manually.
 |
|
Type 9107.00.00 |
Type 9109.00.00 |
Diameter 800 mm. This
pelleting machine is suitable for the semi automatic
pelleting of larger seed lots of vegetable- and
agricultural seeds. The machine pellets a seed lot in
batches. The seed batches should be weighed manually and
manually be discharged in the pelleting room. Also the
speed of the rotor and spinning disc should be adjusted
manually. On the picture the complete installation, type
19003.007 with in it the rotary pelleting machine, type
9107.00.00
 |
Diameter 1200 mm. This
pelleting machine is suitable for the automatic
pelleting of larger seed lots of vegetable- and
agricultural seeds. The machine pellets a seed lot in
batches. The seed batches are standard automatically
weighed and discharged in the pelleting room. The speed
of the rotor and spinning disc can be adjusted by means
of the switch panel with touch screen.
 |
|
PELLETING MACHINE |
|
|
The pelleting drums are
used for making seed pellets. With the seeds, powders
and liquid, according to a certain procedure, seed
pellets can be made. |
|
Type 9103.00.00 |
Type 9100.20.00 |
This unit is used for very
small seed lots like begonia or tobacco or smaller lots
of long shaped seeds, like lettuce or fennel.
 |
This unit can be used for
all kind of seeds, for small lots of flower seeds, but
also for larger lots of vegetable seeds. Treatment per
batch.
Type 9102.00.00, which is suitable for larger capacities
of all kind of seeds, is also available.
 |
|
|
|
|
SIZING
MACHINE FOR WET PELLETS |
SIZING
MACHINE FOR DRY PELLETS |
|
Type 9115.10.00 |
Type 9116.20.00 |
This calibrating machine
is used for accurate sizing of all kind of wet seed
pellets. After the pelleting process it is important to
size the pellets as soon as possible to take out too
small or too large seed pellets, so the seed pellets can
be dried immediately.
Different screen sizes available.
Larger capacity machines available.
 |
These calibrating machines
are used for accurate sizing of all kind of dry seed
pellets. After the drying process it is important to
size the pellets to take out too small or too large seed
pellets. During drying the pellets shrink as they loose
water, because of this you can expect differences in
size of the seed pellet.
Available with one or two screens.
 |
|
|
|
|
PELLETING POWDER FEEDERS |
DRYING
CARRIERS FOR PELLETS |
|
|
Type 3200.41.00 |
These systems are used for
feeding (transporting) pelleting powders from the powder
container to the pelleting pans. You can dose the
powders with a certain speed and therefore in a
controlled way during the pelleting process. You can
feed different powders during one process.
Can be built according your requirements. |
These carriers are mainly
used to dry seed pellets in a stationary way. You can
also use the carriers to dry seeds in cotton bags.
Different types are available. The carriers can be used
in our conditioned seed dryer, type 3200.00.00
 |
|
|
